Date Posted: 28-04-2018

Last Updated: September 19, 2026

Introduction

When Apache (httpd) is configured as a reverse proxy, load balancer, or needs to communicate with backend services such as Tomcat, Node.js, Docker containers, Kubernetes services, or external APIs, SELinux may block outbound network connections even if the proxy configuration is correct.

A common symptom is that Apache starts successfully, but requests fail with errors such as 503 Service Unavailable, Connection Refused, or Permission Denied in the Apache error logs.

This article explains how to identify the issue and enable Apache network connectivity through SELinux.

---

Understanding the Issue

SELinux (Security-Enhanced Linux) provides mandatory access controls on Linux systems. By default, Apache runs under the httpd_t security context, which restricts outbound network access.

As a result, Apache may be unable to connect to:

• Backend application servers
• Reverse proxy targets
• External APIs
• Database servers (in some configurations)
• Docker or Kubernetes services
• Internal microservices

Even when firewall rules and proxy settings are correct, SELinux can silently block the connection.

---

Common Symptoms

You may encounter errors similar to:

AH00957: HTTP: attempt to connect to 127.0.0.1:8080 failed
AH01114: HTTP: failed to make connection to backend
Permission denied
503 Service Unavailable

Check SELinux status:

getenforce

Example output:

Enforcing

If SELinux is enforcing, continue with the steps below.

---

Step 1: Temporarily Allow Apache Network Connections

Run the following command:

/usr/sbin/setsebool httpd_can_network_connect 1

Verify the value:

getsebool httpd_can_network_connect

Expected output:

httpd_can_network_connect --> on

This change remains active until the server is rebooted.

---

Step 2: Test the Proxy Configuration

After enabling the SELinux boolean temporarily:

1. Restart Apache

systemctl restart httpd

2. Test the application URL.
3. Review Apache logs:

tail -f /var/log/httpd/error_log

If the proxy begins working correctly, SELinux was blocking the connection.

---

Step 3: Make the Change Permanent

Once confirmed, enable it permanently:

/usr/sbin/setsebool -P httpd_can_network_connect 1

Verify:

getsebool httpd_can_network_connect

Output:

httpd_can_network_connect --> on

The -P option writes the configuration permanently so it survives reboots.

---

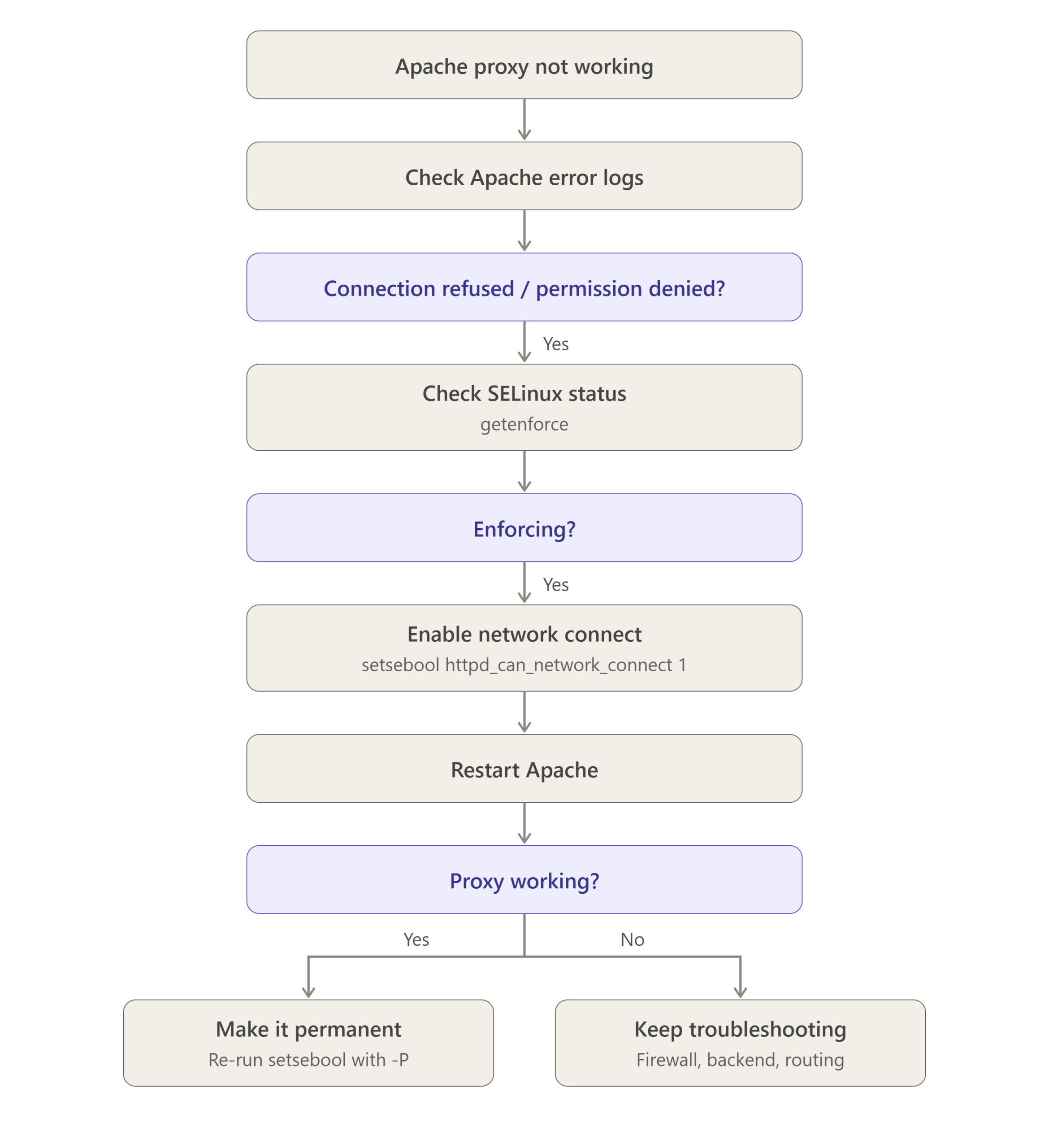

Troubleshooting Flow

---

Useful SELinux Commands

Check SELinux Status

sestatus

View Current Boolean Value

getsebool httpd_can_network_connect

List All Apache SELinux Booleans

getsebool -a | grep httpd

Check SELinux Audit Logs

ausearch -m avc -ts recent

or

grep denied /var/log/audit/audit.log

---

Real-World Use Cases

Enabling httpd_can_network_connect is commonly required when Apache acts as:

Scenario	Example
Reverse Proxy	Apache → Tomcat
Load Balancer	Apache → Multiple Backend Servers
API Gateway	Apache → External APIs
Docker Proxy	Apache → Docker Containers
Kubernetes Ingress	Apache → Cluster Services
Node.js Proxy	Apache → Express Application
Python Proxy	Apache → Gunicorn/Uvicorn

---

Conclusion

If Apache reverse proxy, load balancer, or backend connectivity suddenly fails while SELinux is running in Enforcing mode, the httpd_can_network_connect boolean is often the root cause.

A quick test using:

setsebool httpd_can_network_connect 1

can help identify the issue. Once verified, make the change permanent using:

setsebool -P httpd_can_network_connect 1

This approach preserves the security benefits of SELinux while allowing Apache to communicate with backend applications and services. By following this method, administrators can resolve proxy connectivity issues efficiently without compromising overall server security.

---

Frequently Asked Questions (FAQ)

1. Why does Apache work when SELinux is disabled?

When SELinux is disabled or set to permissive mode, security restrictions are not enforced. Apache can freely connect to backend services, which is why proxy connections start working.

---

2. Is enabling httpd_can_network_connect safe?

Yes. This is the recommended SELinux method for allowing Apache to initiate outbound network connections. It is significantly safer than disabling SELinux entirely.

---

3. Do I need to reboot after running setsebool -P?

No. The change takes effect immediately and remains persistent across future reboots.

---
