Script to take tablewise mysqldump and store in s3

In this post, we are going to explain on how to take mysqldump of individual table for all the databases. As a bonus, we will add feature to store the dumps to s3(with Versioning) and encrypt the backup.

Prerequisites:

1. s3cmd command on linux machine.
2. Mysql Root Password
3. S3 Bucket name with Versioning enabled
4. Aws Access key & Secret Key with write privileges to the bucket.

#!/bin/sh
# support@pheonixsolutions.com
# script to take tablewise backup and upload it to a versioning enabled s3 bucket.

s3cmd --version &> /dev/null;
if [ $? -ne 0 ];
then
	echo -e "s3cmd not found; Please install s3cmd"
	exit 0;
fi
S3BACKUP="s3-bucket-name";
DB_USER=root
DB_PASS="DBPassword"
BASE_BAK_FLDR=/backup/sqldailybackups
DATA=`date|shasum|base64|head -c 16`
BACKUP_LOG=$BASE_BAK_FLDR/sqlbackuplog
FROM_EMAIL='from-email@domain.tld'
TO_EMAIL='to-email@domain.tld'
if [ -d /backup/sqldailybackups/];
	then
	echo -e "Backup folder : /backup/sqldailybackups/";
else
	mkdir -p /backup/sqldailybackups/
fi
> $BACKUP_LOG
DBS_LIST=$(echo "show databases;"|mysql -u $DB_USER $DB_PASS -N 2>> $BACKUP_LOG)
	if [ -z "$DATA" ];
		then
		echo -e "Base64 Failed: Hash Empty"| mail -r $EMAIL -s "SQL backup failed : `date` :  $TO_EMAIL; exit 0;
	fi
		echo -e "`date` : $DATA" >> $BASE_BAK_FLDR/../logdate_OIFS=$IFS; IFS=$'\n'
			for DB in $DBS_LIST;
			do
				DB_BKP_FLDR=$BASE_BAK_FLDR/$(date +%d-%m-%Y)/"$DB"
    			[ ! -d "$DB_BKP_FLDR" ]  && mkdir -p "$DB_BKP_FLDR"
				for table in $(echo "show tables;"|mysql "$DB" -u $DB_USER $DB_PASS -N 2>> $BACKUP_LOG);
				do
					if [ "$table" == event ];
						then
						mysqldump -u $DB_USER $DB_PASS --events "$DB" "$table" 2>> $BACKUP_LOG|gzip > "$DB_BKP_FLDR"/"$table".sql.gz
					elif [ "$table" == general_log ] || [ "$table" == slow_log ];
						then
						mysqldump -u $DB_USER $DB_PASS --skip-lock-tables "$DB" "$table" 2>> $BACKUP_LOG|gzip > "$DB_BKP_FLDR"/"$table".sql.gz
					else
						mysqldump -u $DB_USER $DB_PASS "$DB" "$table" 2>> $BACKUP_LOG|gzip> "$DB_BKP_FLDR"/"$table".sql.gz
					fi

					openssl enc -aes-256-cbc -salt -a -in "$DB_BKP_FLDR"/"$table".sql.gz -out "$DB_BKP_FLDR"/"$table".sql.gz.enc -k $DATA
					s3cmd put "$DB_BKP_FLDR"/"$table".sql.gz.enc s3://$S3BACKUP/"$DB"/"$table".sql.gz.enc
					rm -f "$DB_BKP_FLDR"/"$table".sql.gz "$DB_BKP_FLDR"/"$table".sql.gz.enc
				done
    			echo "$DB" >> $BACKUP_LOG
			done
			IFS=$OIFS
			find $BASE_BAK_FLDR/-maxdepth 1 -mtime +5 -type d -exec rm -rf {} \;
			CUR_VER=`s3cmd info s3://$S3BACKUP/mysql/user.sql.gz.enc | grep "Last mod" | awk -F", " '{print $2}'`
			echo -e "List of databases & mysqldump errors(if any):\n-----\n`grep -v "Using a password on the command line interface can be insecure" $BACKUP_LOG`\n-----\nBackup location: s3://$S3BACKUP/\n\nCurrent Version on s3: $CUR_VER\n\nPrevious Version on s3: $OLD_VER\n\nData: $DATA" | mail -r $EMAIL -s "SQL Backup Completed @ `date` :  $TO_EMAIL

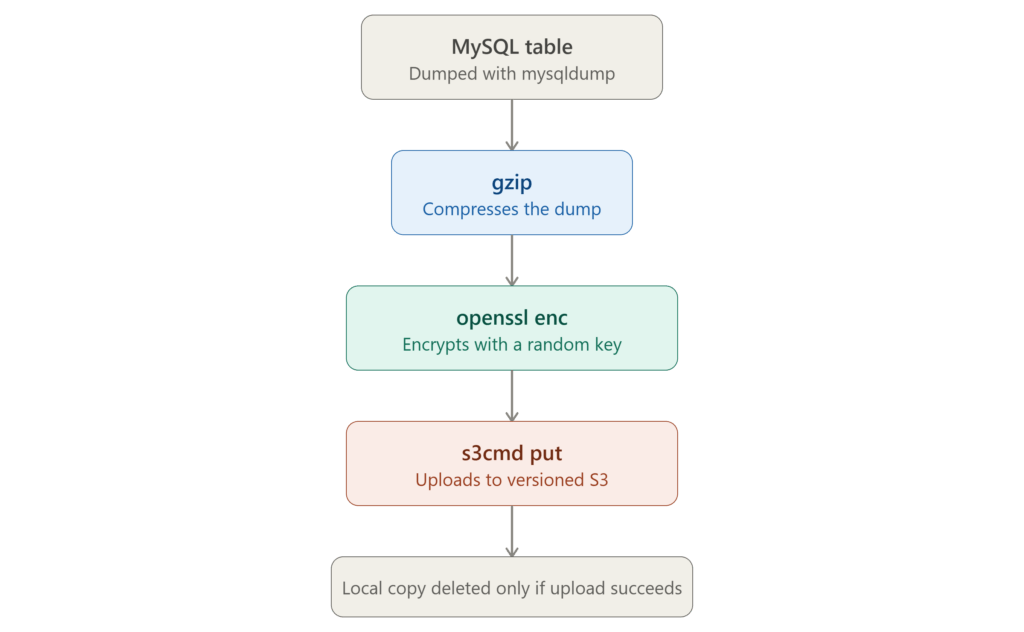

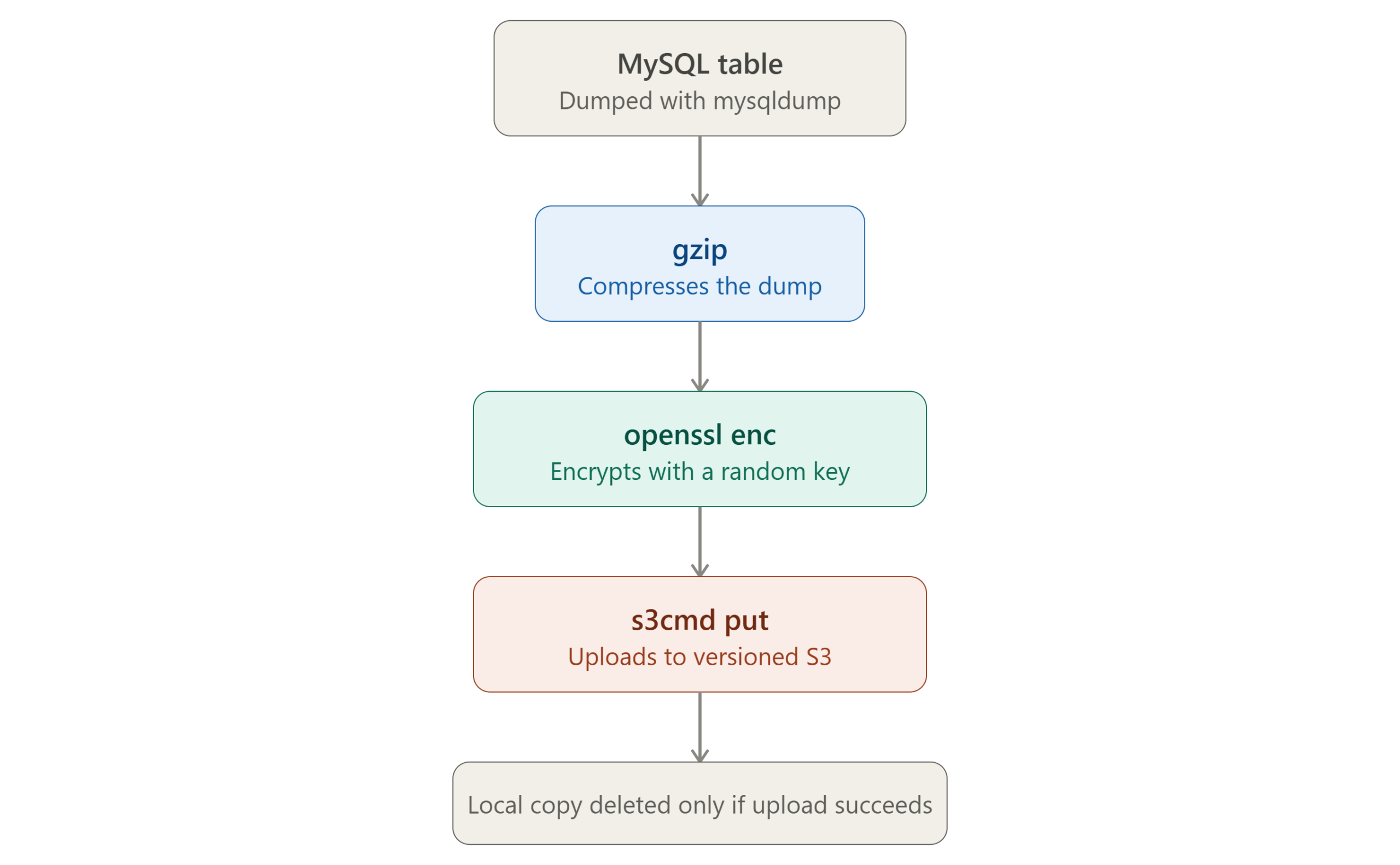

The script will upload the table backup in a encrypted format to s3 bucket.

Restoration Process:

Inorder to restore the table/database from s3, follow the below mentioned steps.

1. Download the encrypted SQL backup from s3. We can use aws cli or other ways to restore the download the backup.
2. Once its downloaded, execute the below command to decrypt the backup. The decryption key will be available on /backup/logdate_OIFS with date and decryption key.

    openssl enc -aes-256-cbc -d -a -in filename.sql.gz.enc -out filename.sql.gz -k Data

Where,

filename.sql.gz.enc – Encrypted filename(input file. Note that this file should exist from where you are executing)

filename.sql.gz – Decrypted filename

Data – Encryption key. Should be get it from backup location.

Wow. Congratualtions 🙂 You have completed the backup setup of mysql database on s3 bucket.
